HYDROCYCLONE
What is a Hydrocyclone?
A hydrocyclone is a device used in industry to separate solid particles dispersed in a fluid by size and density. The machine works with the centrifugal force and as there are no moving parts needs almost no maintenance.
Hydrocyclones are also employed in industries such as mineral processing plants, sand washing plants, construction aggregates, mining plants and wastewater treatment plants for classification, desliming and dewatering.
At Rocktech Engineers, we manufacture high-performance hydrocyclones designed for efficient solid-liquid separation and long-lasting operation.
Hydrocyclone series washing equipment with dewatering machine is a tertiary stage machine in a stone crusher plant where input to the machine is fed from vibrating screen.

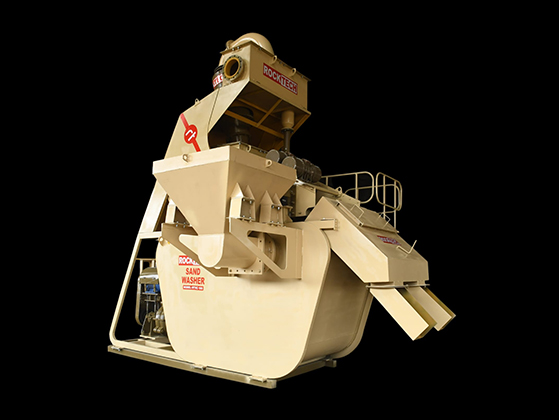

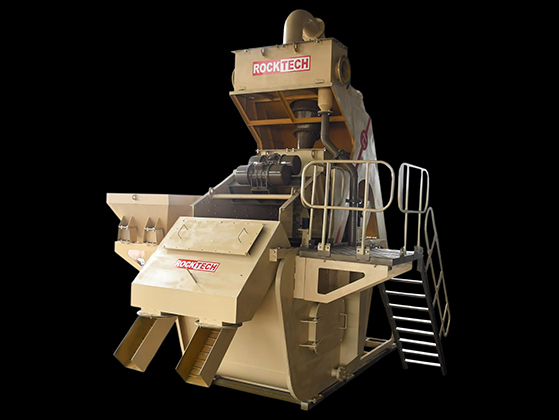

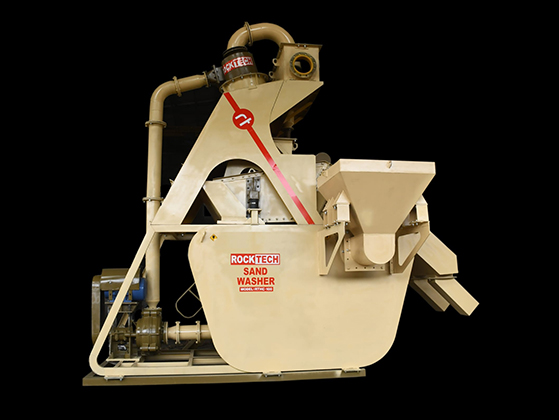

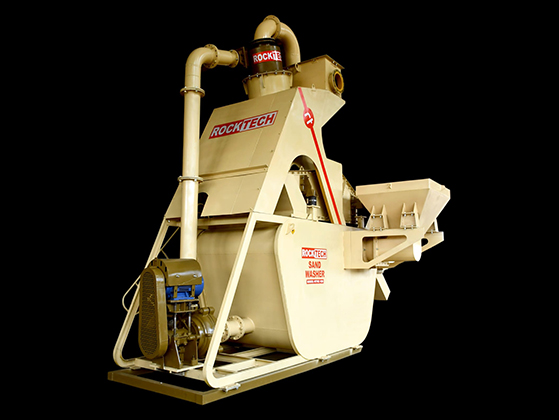

Hydrocyclone manufacturers and exporters in Mumbai, India to all over the world hydro cyclones industry in low price with reliable and durable features. Rocktech hydro cyclone series is a combination of mainly hydro cyclone and dewatering unit. This machine is driven by foot mounted electric motor connected to a slurry pump via belt and pulley, which pumps slurry mixture from tub to hydro cyclone. The pump is connected to hydro cyclone by discharge spool via rubber hose which is highly wear resistance combined with flexibility and vibration reductions.
The cyclone entrance is designed in such a way to allow the incoming feed to help generate and not interfere with the spiral path that the ore must take inside the cyclone. The centrifugal force that is generated by this spin, forces the bigger particles outwards towards the wall of the cyclone. as such that the ground rock will become finer the closer that you get to the center of the cyclone. Coarse particles is discharged to dewatering screen through underflow of hydro cyclone via input chute. The washed sand output delivered to the dewatering unit from where final product of sand reaches the output chute.
Hydrocyclone manufacturers and exporters in Mumbai, India to all over the world hydro cyclone industry according to the client's need and suggestions with long lasting and low maintenance.
TECHNICAL SPECIFICATION
| Model | Water Required | Total Power | Capacity | Hydro Cyclone | Deawatering Screen | ||
| Cum/hr | (KW) | (TPH) | Size Dia(mm) | Screening Size(mm) | RPM | Motor Power(KW) | |
| RTHC-70 | 105 | 23.5 | 75 | 400 | 2400L x 1200W | 1000 | 5 |
| RTHC-120 | 180 | 35 | 120 | 400 | 2400L x 1800W | 1000 | 5 |
| RTHC-150 | 225 | 55 | 150 | 500 | 4000L x 1800W | 1000 | 15 |
| RTHC-200 | 225 | 55 | 220 | 500 | 4000L x 2100W | 1000 | 18 |
NOTE: Due to the difference of rocks and the size percentage, distribution and the practical capacity will be different.
Frequently Asked Questions (FAQ)
Q1 What are the uses of a hydrocyclone?
Hydrocyclones are used for classifying, separating, and dewatering solid particles from liquid streams in industries such as mining, sand washing, and mineral processing.
Q2Are there any moving parts?
No, hydrocyclones do not have any moving parts, which results in low maintenance requirements
Q3 How do you choose the right hydrocyclone size?
Hydrocyclone size selection depends on factors such as feed material, particle size, slurry concentration, pressure, and required separation efficiency.
